Simple dual band antenna for 145 - 431 MHz - Pattern study

Pattern study using the software "EZNEC"  V6 free by W7EL

Ideal situation (dipole in free space):

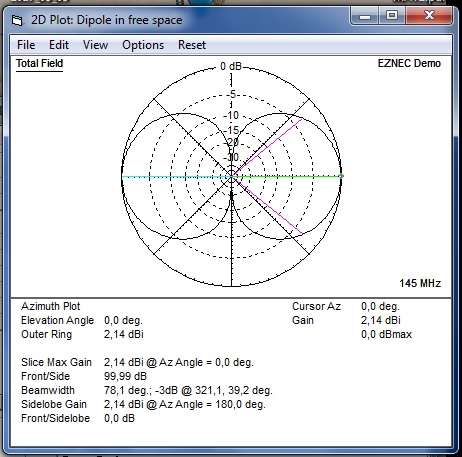

At  145 MHz; this is the classic diagram of an half wave dipole:


At 431 MHz; this is a diagram of a 3/2 lambda dipole in free space:


But if you put the dipole in vertical polarization, 3 meters from the ground you che see this:

For the half wave dipole at 145 MHz:


For the same dipole at 431 MHz:



In both case maximun gain in low in the horizon and, yes this antenna is not for DX, but it is a simple, cheap and usable antenna.

73 de IZ3AYQ
